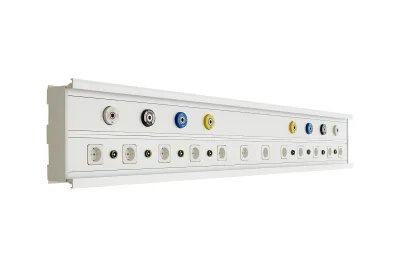

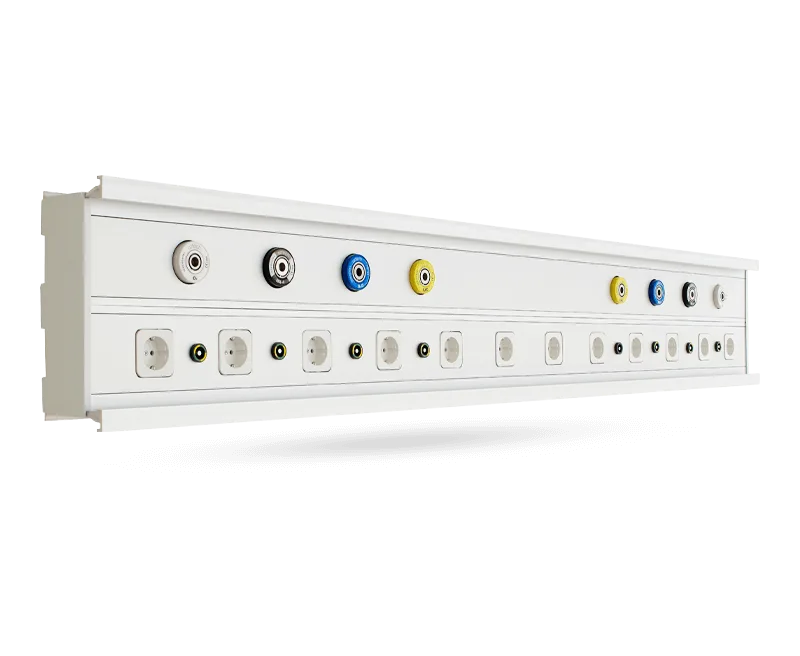

Intensive care bed head unit that gathers medical gas, electrical and communication lines in one body at the critical patient's bedside; 12 electrical sockets, 8 earthing sockets and 2 accessory rails come as standard.
Critically ill patients in intensive care need uninterrupted monitoring and treatment. In response to this need, the 1040.10 / 1040.20 bed head units safely bring medical gas, electrical and communication connections together in a single system. Developed with the high technical expectations of intensive care in mind, the units help the care team intervene quickly and effectively; patient safety and operational continuity are design priorities.
The body is made of impact-resistant material and can be cleaned easily with the disinfectants used in hospitals. All of the unit's electrical installation meets IEE regulations.
| Material | Electrostatically painted extruded aluminium and aluminium rails |
|---|---|
| Colour | Anodised |
| Power Input | 220 V 50 Hz |
| Standard Accessories | 12 electrical sockets, 8 earthed sockets, 2 accessory rails (25 x 10 mm) |
| Optional Accessories | Medical gas outlets, telephone outlet, UPS outlet, data outlet, nurse call outlet, monitor stand, IV pole, examination light |
| Length (single bed) | 1500 mm (Model 1040.10) |
| Length (double bed) | 3000 mm (Model 1040.20) |
| Number of Channels | 2 |
| Number of Rails | 2 |
For every device you purchase we set up an installation, training and after-sales support plan. Contact our teams for preventive maintenance contracts, spare parts and clinical application support.
