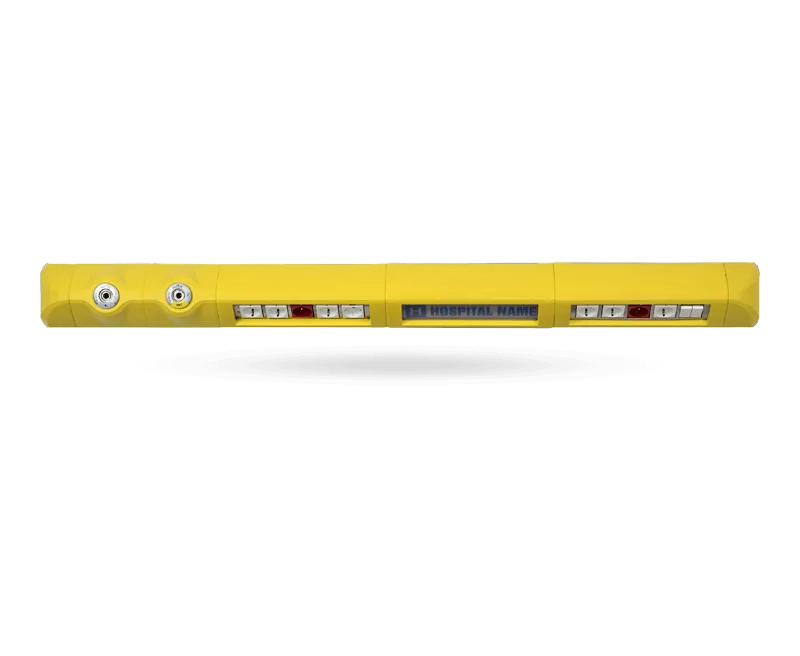

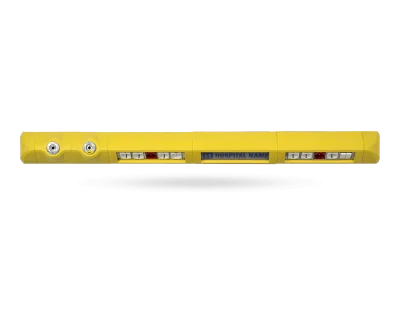

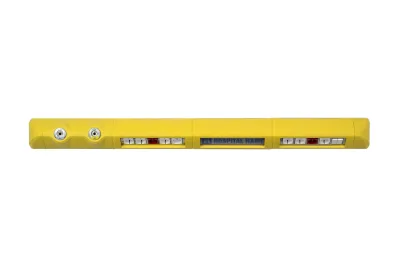

New-generation bed head unit that can be built in the desired layout with 5 different modules arranged on an aluminium main frame; ABS covers in white, yellow, light grey and anthracite.
The modular bed head unit is a new-generation solution that brings together the medical gas, electrical and communication connections needed during treatment and care in a safe, ergonomic structure. Made up of colourful, multifunctional modular parts, it is easy to personalise.

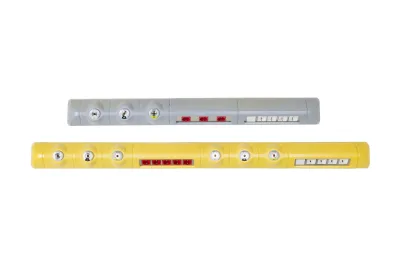

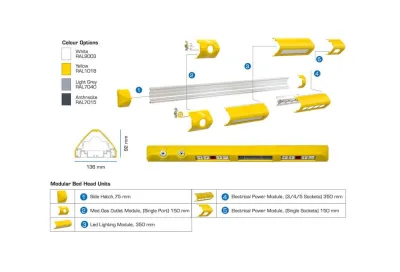

All parts are held firmly on a durable aluminium main frame. The ABS covers come in white, yellow, light grey and anthracite. Five different modules can be arranged in the desired order to obtain a configuration tailored to the need, and each section can be adapted to the customer's requests.
The unit uses impact-resistant materials, and its surfaces can be cleaned with hospital disinfectants. All electrical wiring complies with IEE regulations. Its stylish, ergonomic design combined with a compact structure keeps the space it occupies to a minimum.
| Material | Electrostatically painted extruded aluminium |
|---|---|
| Colour | RAL colours available |
| ABS Cover Colours | White, yellow, light grey, anthracite |
| Number of Modules | 5 different modules |
| Power Input | 220 V 50 Hz |
| Standard Accessories | 3 electrical sockets, 2 lamps |
| Optional Accessories | Medical gas outlets, telephone outlet, UPS outlet, data outlet and nurse call outlet |
| Length (single bed) | 1500 mm (Model 1065.10) |
| Length (double bed) | 3000 mm (Model 1065.11) |
For every device you purchase we set up an installation, training and after-sales support plan. Contact our teams for preventive maintenance contracts, spare parts and clinical application support.

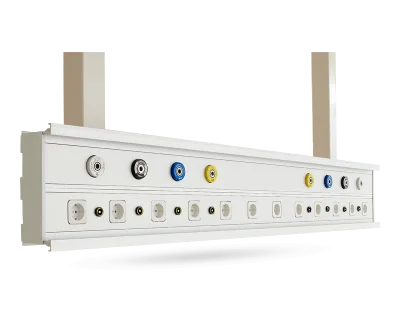

Ceiling-type intensive care bed head unit that brings medical gas, power and data connections down from the ceiling, reducing the clutter of cables…

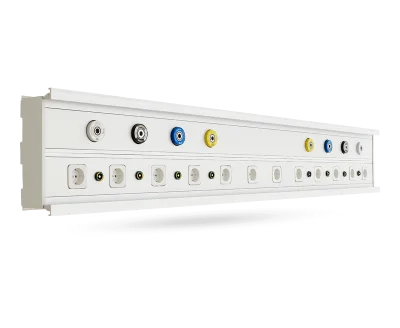

Intensive care bed head unit that gathers medical gas, electrical and communication lines in one body at the critical patient's bedside; 12…

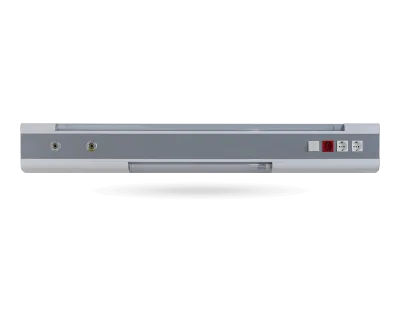

Ergonomic, compact bed head unit that takes up minimal space and combines medical gas, electrical and communication services, in single- and…

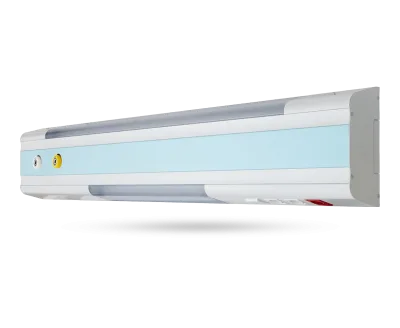

Aluminium unit that brings the medical gas, power and communication connections needed at the bedside together in one body; available as 1500 mm for…
