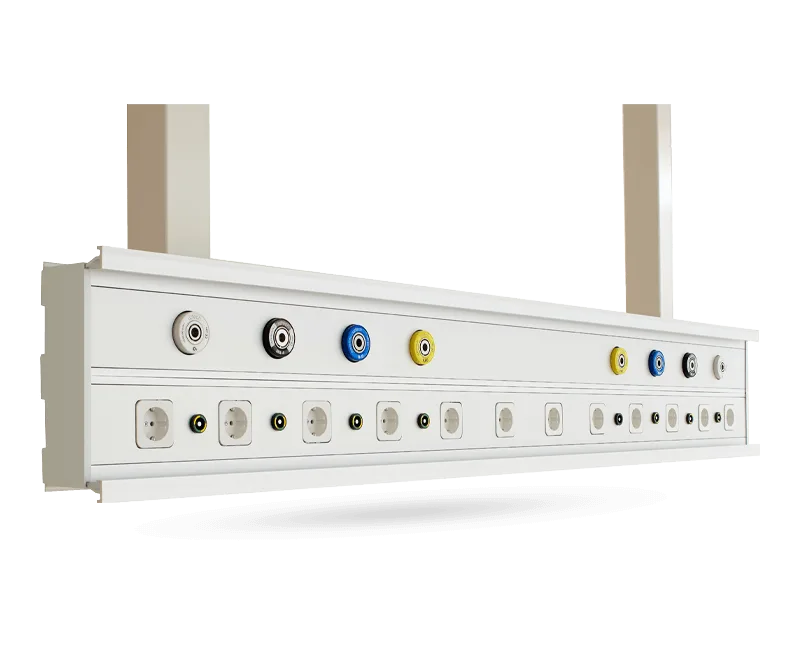

Ceiling-Type Intensive Care Patient Bed Head Unit 1045.10 / 1045.20

Mounted on the ceiling, the 1045.10 / 1045.20 models deliver from above, as one safe system, the medical gas, electrical and communication lines needed by critical patients under continuous observation and treatment. Bringing the connections down from the ceiling reduces the tangle of cables and hoses that builds up on floors and walls, making the working area safer, more hygienic and easier to control.

By making more efficient use of the space in the room, this layout keeps the patient's surroundings more organised and accessible. The care team can reach equipment quickly, which improves ergonomics and operational efficiency in intensive care routines. Made of impact-resistant material, the units can be cleaned with hospital disinfectants, and all of the electrical installation complies with IEE regulations.

Key Features

• Medical gas, power and data services supplied from the ceiling
• Electrostatically painted extruded aluminium body and aluminium rails; anodised finish
• Standard equipment: 12 electrical sockets, 8 earthing sockets and 2 accessory rails measuring 25 x 10 mm
• Optional medical gas outlets, telephone, UPS, data and nurse call outlets; monitor stand, IV pole and examination light
• Length options of 1500 mm for one bed (1045.10) and 3000 mm for two beds (1045.20)
• 2 channels, 2 rails; 220 V 50 Hz power input

Applications

• Intensive care units
• Critical care areas that need an organised, hygienic patient environment
