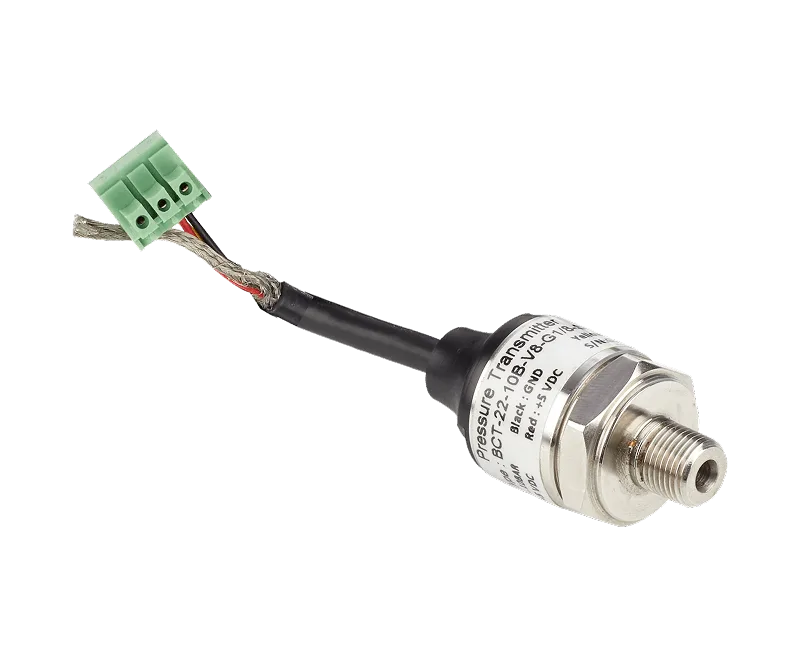

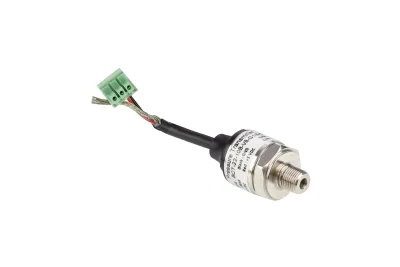

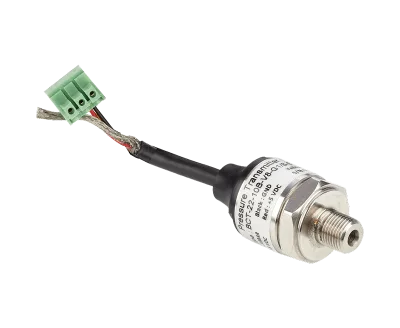

Medical Gas Pressure Sensors
Brand: Üzümcü Product code: 4400.PB
Pressure sensors with a 4-20 mA signal output used in digital alarm panels to detect high and low pressure; positive pressure, vacuum and high pressure models.
Available to order
- Installation and user training support
- Technical service and preventive maintenance
- Fast, transparent quotation process
Pressure sensors are used in digital alarm panels to detect high and low pressure in medical gas systems. Thanks to the 4-20 mA signal output, the measured pressure value is passed to the alarm panel.
Separate models are available for positive pressure, vacuum and high pressure reducer measurement, so monitoring of pipelines and gas source points can be set up as required.
Key Features
- 4-20 mA signal output
- 8-32 V supply voltage
- G 1/4 inch connection
- 4400.PB: positive pressure sensor, max. 10 bar
- 4400.VB: vacuum sensor, -1/0 bar
- 4400.YB: high pressure reducer sensor, max. 250 bar
Applications
- Medical gas line monitoring with digital alarm panels
- Pressure monitoring at gas sources and reducer outlets
| Signal Output | 4-20 mA |
|---|---|
| Connection | G 1/4 inch |
| Supply Voltage | 8 - 32 V |
| Positive Pressure Sensor, Max. 10 bar | 4400.PB (article code 67.1065) |
| Vacuum Sensor, -1/0 bar | 4400.VB (article code 67.1108) |
| High Pressure Reducer Sensor, Max. 250 bar | 4400.YB (article code 67.1250) |
For every device you purchase we set up an installation, training and after-sales support plan. Contact our teams for preventive maintenance contracts, spare parts and clinical application support.
