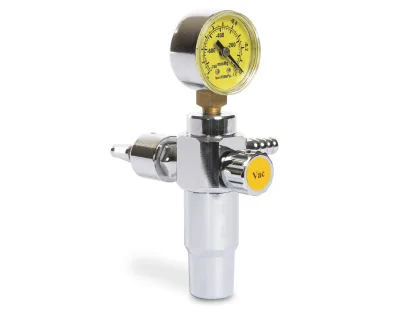

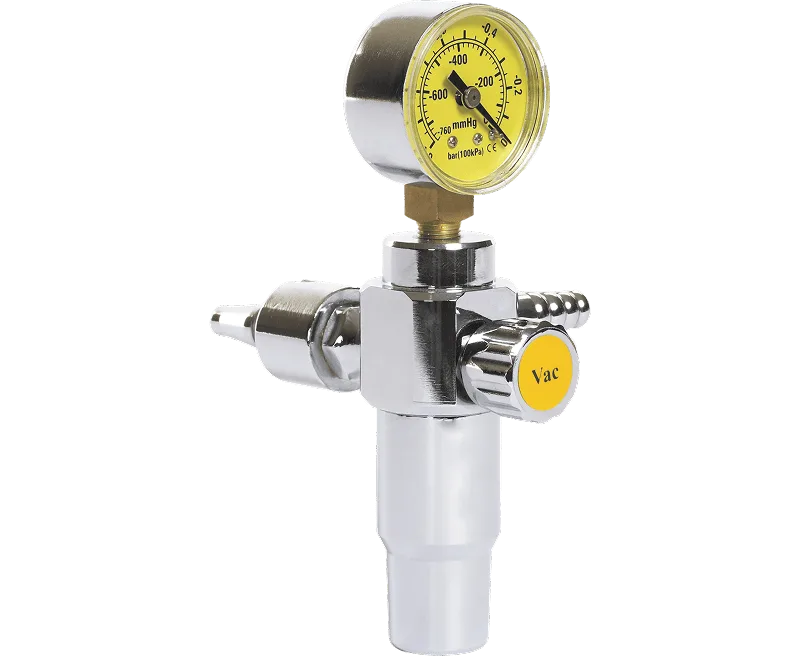

1422 Series venturi regulator that generates vacuum from air or oxygen where there is no central vacuum line. Chrome-plated brass body; suction flow of up to 25 L/min at -775 mbar.
Where there is no central vacuum line, suction needs can be met with the 1422 Series venturi vacuum regulator. The device uses a positive-pressure gas such as air or oxygen to create negative pressure, providing a reliable source of suction in medical settings, hospitals and laboratories in particular.
The chrome-plated brass body offers long-lasting, robust use. The pressure level is easy to read on the vacuum gauge, and the desired vacuum is set precisely with the flow adjustment knob.
Maximum suction flow is 25 L/min at -775 mbar; at this suction level the device consumes 60 liters of gas per minute. Its compact, user-friendly design makes use practical and safe. Connections can be chosen to BS, DIN or AFNOR standards.
| Max. Suction Flow | 25 L/min (-775 mbar) |
|---|---|
| Gas Consumption at Max. Suction | 60 L/min |
| Operating Gas | Positive-pressure air or oxygen |
| Body Material | Chrome-plated brass |
| Connection Standards | BS, DIN, AFNOR |
For every device you purchase we set up an installation, training and after-sales support plan. Contact our teams for preventive maintenance contracts, spare parts and clinical application support.
