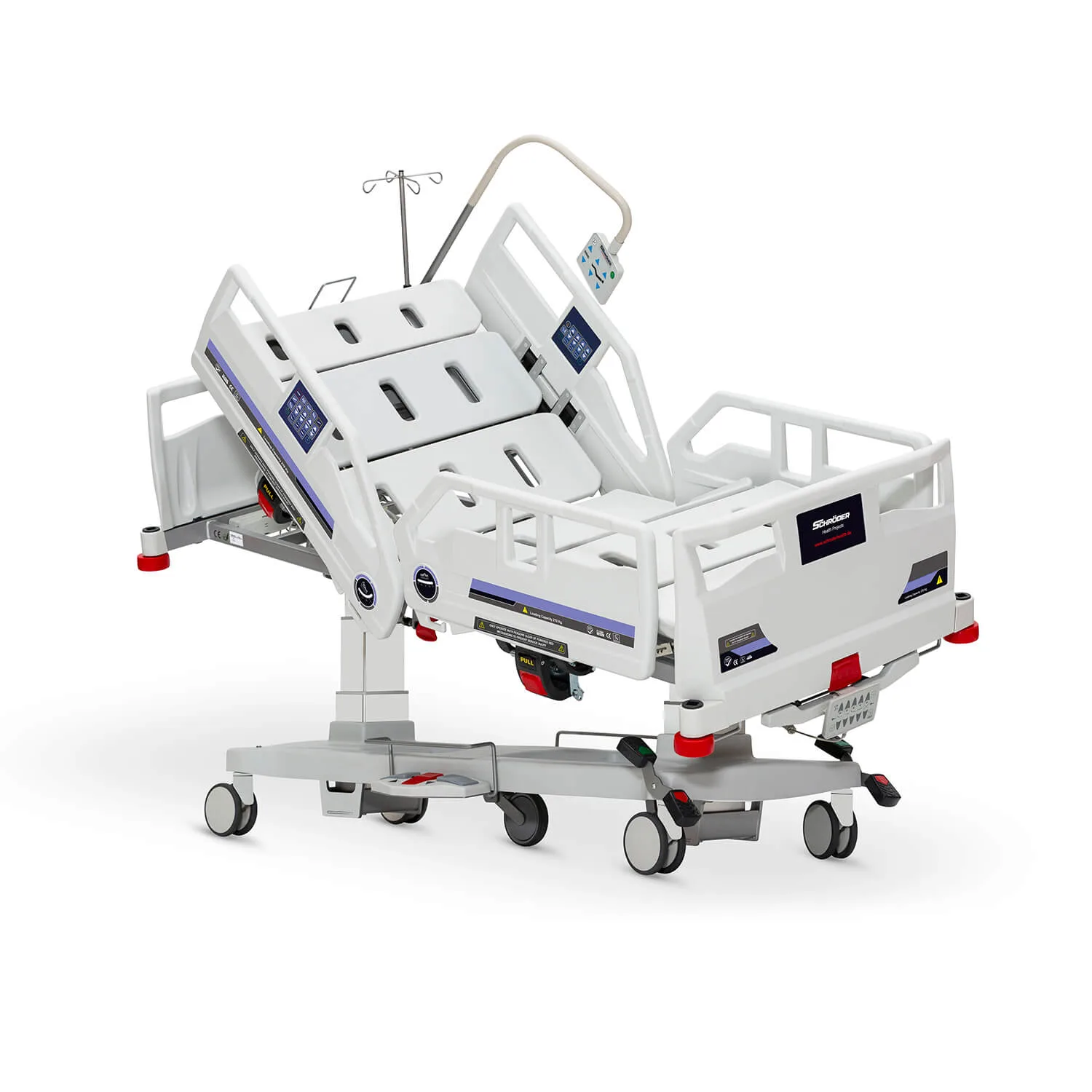

Column-Motor Electric Hospital Bed CURA 5000
Brand: Schröder Health Product code: CURA 5000
4-motor electric hospital bed: 52 – 90 cm height range, 90 x 200 cm platform, 320 kg safe working load and rail-mounted control panels.
Available to order
- Installation and user training support
- Technical service and preventive maintenance
- Fast, transparent quotation process
CURA 5000 is an electric hospital bed with a column-motor design and an optional fifth motor for lateral tilt. It aims to provide patient safety, bacteriological protection and comfort in intensive care units.
The control panels are mounted on the rails, two for the nurse and two for the patient. With 221 x 107 cm overall dimensions, a 90 x 200 cm platform and a 320 kg safe working load, it suits uses that need high load capacity.
Key Features
- Four electric motors for height, Trendelenburg / reverse Trendelenburg, backrest and thigh adjustment; mechanical ratchet for the calf section
- 52 – 90 cm height range without mattress
- 90 x 200 cm mattress platform
- Side rails 42 cm high
- 15 cm castors with central locking
- 320 kg safe working load
- Optional fifth motor for 0° – 16° lateral tilt
Applications
- Intensive care units
- Hospital wards
- Long-term care units
| Overall Dimensions | 221 x 107 cm |
|---|---|
| Overall Dimensions with Fixed Headboard | 225 x 107 cm |
| Backrest Angle (Max.) | 0° – 70° |
| Leg Section Angle (Max.) | 0° – 40° |
| Height Range (without mattress) | 52 – 90 cm |
| Trendelenburg / Reverse Trendelenburg Angle | 0° – 17° (each direction) |
| Lateral Tilt Angle (Optional) | 0° – 16° |
| Mattress Platform | 90 x 200 cm |
| Side Rail Height | 42 cm |
| Castor Diameter | 15 cm (central locking); 5th castor option |
| Control Panels | 2 nurse, 2 patient (rail-mounted) |
| Safe Working Load | 320 kg |
| Power Supply | 230 V, 50 Hz |
| Standard Features | Auto-regression, X-ray cassette application, safe bed entry and exit |
| Optional Accessories | 5th castor for safe steering, touch-screen control panel, flexible-arm control panel, bilateral high-low foot control, minimum height indicator, bed exit alarm, brake alarm, intelligent night light, one-touch shock position, digital scale system, fixed headboard, oxygen cylinder holder, bed extension with linen holder, writing table, file holder, illuminated hand control, lateral tilt |
For every device you purchase we set up an installation, training and after-sales support plan. Contact our teams for preventive maintenance contracts, spare parts and clinical application support.
