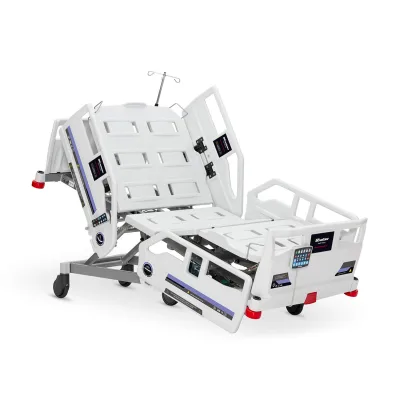

4-Motor Electric Hospital Bed CURA 4150

CURA 4150 is a hospital bed driven by four electric motors. It looks after the patient's safety and comfort throughout the stay on the ward and also provides bacteriological protection. Also suitable for intensive care units, the bed has a 4-section jointed platform, and its height is adjusted by scissor lifts with a high load capacity.

Height, TR/ATR tilt, backrest and thigh support are adjusted by motors, and the foot end has a mechanical ratchet. The movements are powered by two linear actuators and two lifting columns, which convert the rotary motion of low-voltage DC motors into linear push-pull motion. The 90 x 200 cm platform consists of ABS plastic parts that can be removed, cleaned and disinfected easily, while special ventilation channels allow air circulation and reduce humidity. Auto-regression, X-ray cassette application and safe bed entry and exit are included, and options such as a digital scale, fixed headboard and intelligent night light can be added.

Key Features

• Four motors for height, TR/ATR tilt, backrest and thigh adjustment; mechanical ratchet at the foot end
• 39 – 82 cm height range without mattress; 0° – 17° Trendelenburg and reverse Trendelenburg
• 90 x 200 cm ABS mattress platform; its parts can be removed, cleaned and disinfected easily
• Side rails 42 cm high
• 15 cm castors with central locking
• 320 kg safe working load; nurse and patient control panels
• Auto-regression, X-ray cassette application and safe bed entry and exit features

Applications

• Hospital wards
• Intensive care units
• Long-term care units
