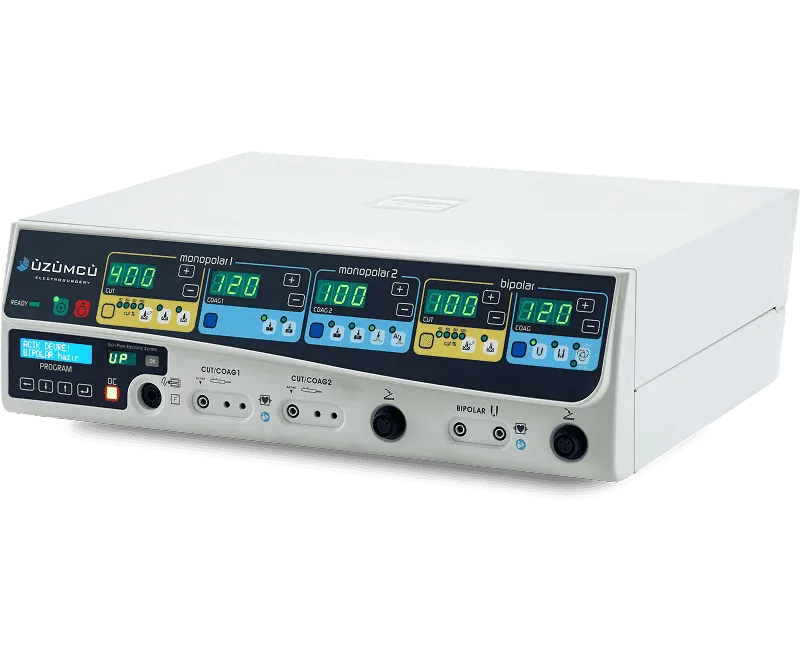

Electrosurgical Unit EK-410 400 W
400 W electrosurgical unit with monopolar and bipolar operation. Cutting, coagulation, spray coagulation and vessel sealing modes make it suitable for many specialties, from general surgery to neurosurgery.
- Installation and user training support
- Technical service and preventive maintenance
- Fast, transparent quotation process
The Üzümcü EK-410 is an electrosurgical unit with a maximum output of 400 W that works in both monopolar and bipolar modes. It can be used for cutting and coagulation in many specialties, including general surgery, orthopedics, urology, cardiovascular surgery and neurosurgery.
Cutting modes with different modulation levels deliver controlled and precise surgical performance. A patient plate monitoring system, visual and audible alarms and a 50-program memory make everyday use safe and practical.
Key Features
- Suitable for use by two surgeons at the same time in monopolar and bipolar mode
- Cutting and blended cut-coagulation modes at different modulation levels
- Spray coagulation mode for fast, wide-area, non-contact coagulation
- Bipolar cutting and vessel sealing for effective hemostasis
- Automatic activation in bipolar use
- Patient plate control system that continuously monitors the resistance between the patient and the return electrode and gives an audible and visual warning if contact is lost
- LCD screen, adjustable power and volume, and a memory that stores 50 operating modes
Applications
- General surgery and orthopedics
- Urology
- Cardiovascular surgery
- Neurosurgery
| Max. Output Power – CUT | 400 W (300 Ω) / 120 W (50 Ω) |
|---|---|
| Max. Output Power – Cut-Coag CUT 80% | 300 W (300 Ω) / 100 W (50 Ω) |
| Max. Output Power – Cut-Coag CUT 60% | 250 W (300 Ω) / 100 W (50 Ω) |
| Max. Output Power – Cut-Coag CUT 40% | 200 W (300 Ω) / 60 W (50 Ω) |
| Max. Output Power – Cut ENHANCED | 250 W (300 Ω) |
| Max. Output Power – Cut-Coag BLEND | 250 W (300 Ω) / 120 W (150 Ω) |
| Max. Output Power – Coag SPEEDY | 120 W (500 Ω) |
| Max. Output Power – Coag DEEP | 120 W (200 Ω) |
| Max. Output Power – Coag SPRAY / SPRAY ARGON | 100 W (2000 Ω) |
| Max. Output Power – Coag COAG | 120 W (50 Ω) |
| Vessel Sealing Output Power | 200 W (50 Ω) |
| Operating Frequency (Monopolar / Bipolar) | 425 kHz / 525 kHz |
| Input Voltage (selectable) | 115 – 230 V AC / 50–60 Hz |
| Dimensions (W x D x H) | 470 x 380 x 150 mm |
| Memory | 50 operating modes |
For every device you purchase we set up an installation, training and after-sales support plan. Contact our teams for preventive maintenance contracts, spare parts and clinical application support.
