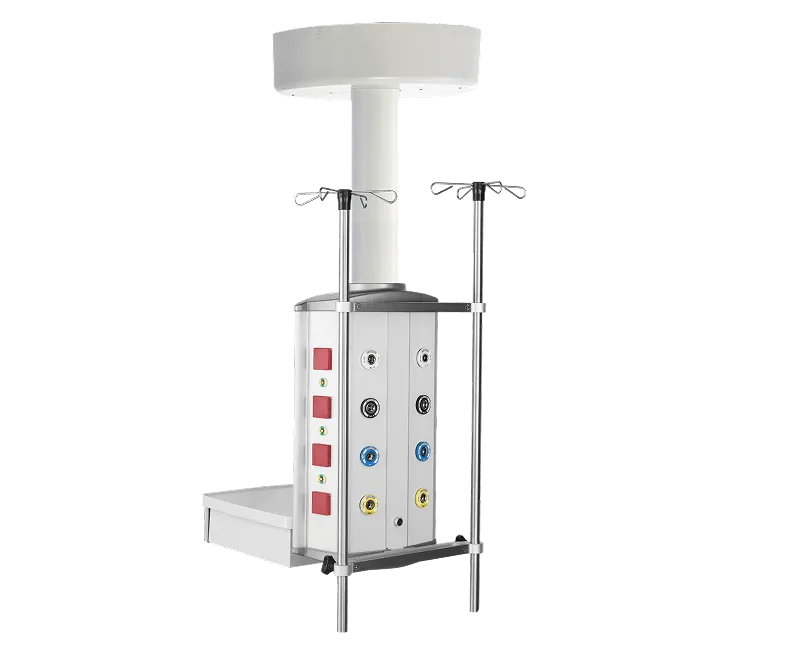

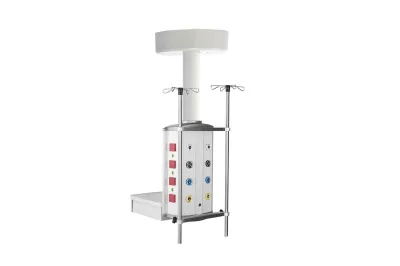

Rigid Medical Pendant

The rigid pendant gathers gas, power and data lines in a sturdy body suspended from the ceiling, creating an organised work point in many clinical areas, from operating theatres to intensive care units and recovery rooms. Since the body can be turned by hand around its own axis, equipment can be pointed precisely in the direction the team needs; this eases the clinical workflow while supporting safe use and efficient use of space.

Because cables and hoses are lifted off the floor and carried overhead, hygiene is maintained and access to medical devices becomes easier. By adding modular accessories, monitor carriers and lighting options, the pendant can be shaped around the unit's workflow, and this flexibility also contributes to patient safety.

Key Features

• Rigid (fixed) structure and extruded aluminium main body
• Manual 350° rotation around the axis
• 220 kg load capacity
• 220 V AC - 50 Hz power input
• Standard 8 electrical sockets, 6 grounding points, a shelf with drawer and 2 IV poles
• Optional accessories such as medical gas outlets, telephone, UPS, data and nurse call outlets, examination light and monitor stand

Applications

• Operating theatres
• Intensive care units
• Recovery rooms and similar medical areas
