Surgical Lights

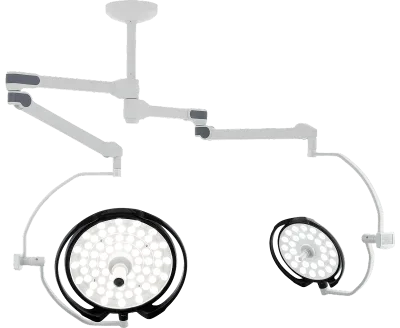

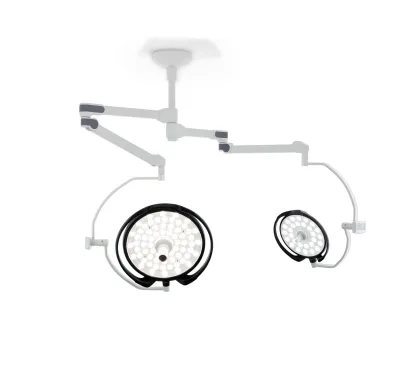

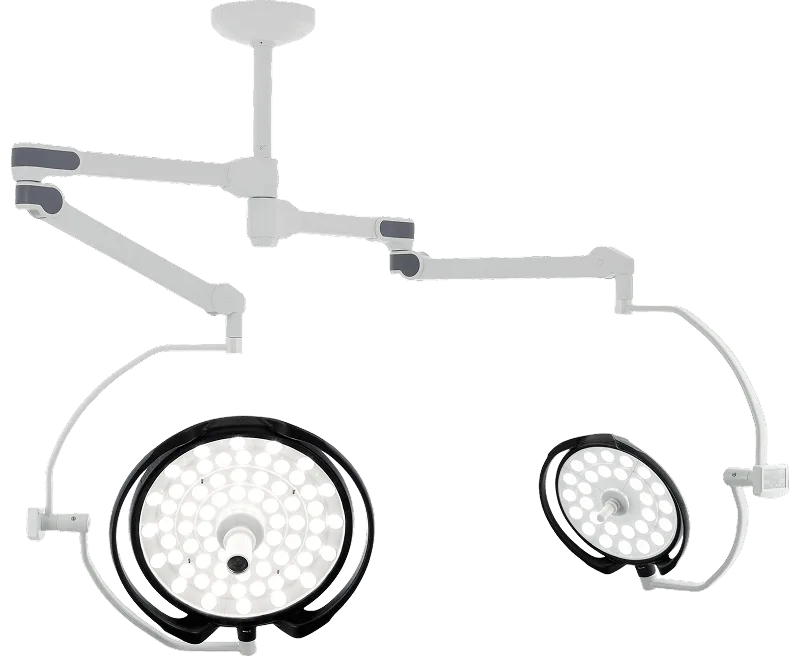

Surgical Ceiling Light with Camera DL-62C
Brand: Üzümcü Product code: DL-62C
LED surgical ceiling light with a camera-integrated 160,000 lux main head and a 120,000 lux satellite head; the surgical field can be followed live with a Full HD camera.
Available to order
- Installation and user training support
- Technical service and preventive maintenance
- Fast, transparent quotation process
The DL-62C is a two-head LED surgical ceiling light. The 650 mm main head delivers 160,000 lux and carries an integrated camera, while the 440 mm satellite head provides secondary illumination at 120,000 lux. Homogeneous, shadow-free light helps the surgical field to be seen clearly and accurately.
The 1080p Full HD camera with 10x optical zoom and autofocus allows the procedure to be followed in real time and, optionally, recorded. This makes training, consultation and team coordination easier. Colour temperature and light intensity are adjusted from the 4.3-inch touch panel to suit different surgical needs.
Key Features
- Camera-integrated main head (160,000 lux) and satellite head (120,000 lux)
- 1080p Full HD camera, 10x optical zoom, autofocus
- Colour temperature adjustable in 7 steps between 3,500 and 5,000 K
- 1–100% light intensity adjustment and endoscopy mode
- Colour rendering index (CRI Ra) of 96%
- 60,000-hour LED life
Applications
- Operating rooms
- Surgical procedures requiring video recording or training
| Head Diameter | 650 mm / 440 mm |
|---|---|
| Number of Heads | 2 (1 main head / 1 satellite head) |
| Illuminance (1 m) | 160,000 lux / 120,000 lux |
| Control Panel | 4.3" LCD touch panel |
| Panel Functions | On/off, light intensity, focus adjustment, endoscopy mode, colour temperature, one-touch maximum light |
| Colour Temperature | 3,500–5,000 K, 7 steps |
| Colour Rendering Index (CRI Ra) | 96% |
| Light Intensity Adjustment | 1–100% |
| Number of LED Modules | 68 / 28 |
| Adjustable Light Field Diameter | 120–300 mm / 148–162 mm |
| LED Life | 60,000 hours |
| Camera | 1080p Full HD, 10x optical zoom, autofocus |
For every device you purchase we set up an installation, training and after-sales support plan. Contact our teams for preventive maintenance contracts, spare parts and clinical application support.
