Imaging Systems

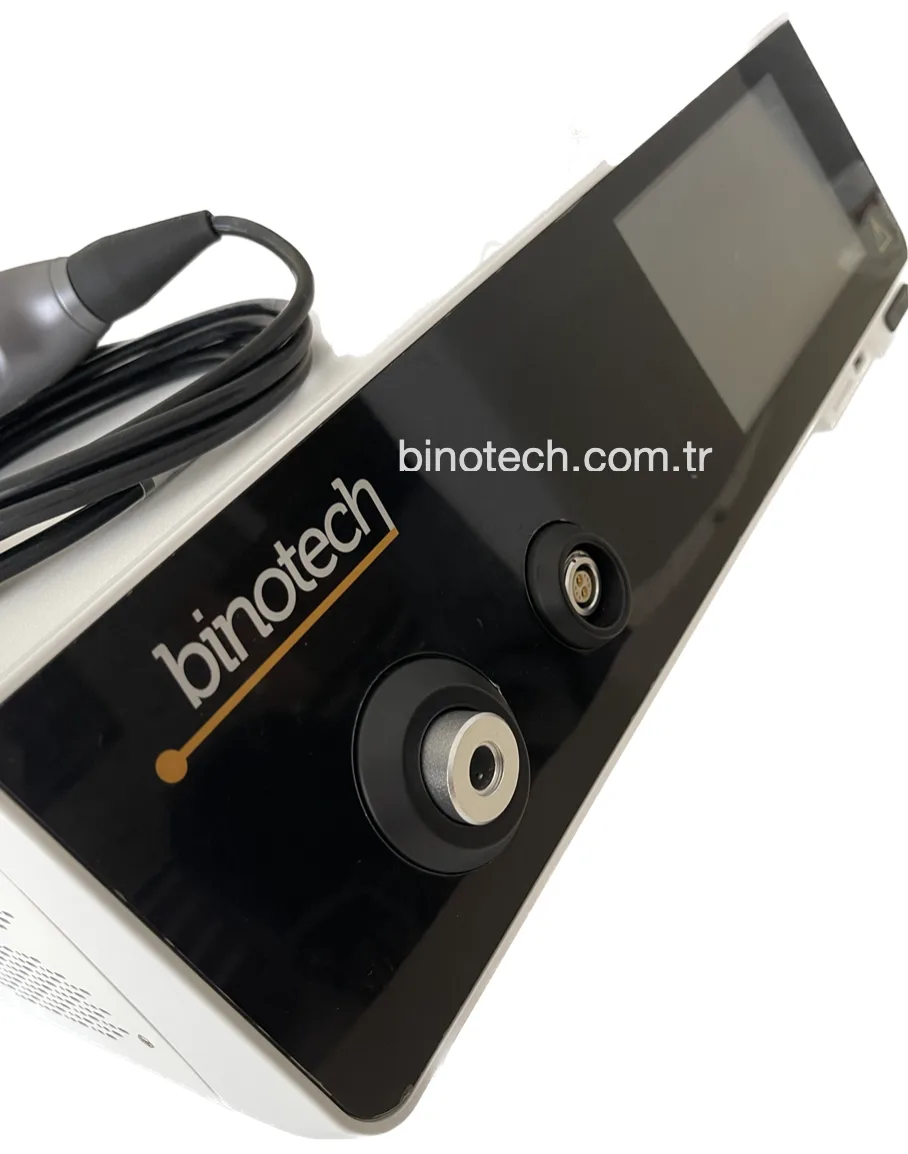

Endoscopy Camera Binotech 4K
Brand: Binotech
Binotech 4K endoscopy camera with an 8.4-megapixel Sony CMOS sensor, built-in LED light source and a 3.7-inch touchscreen.
Available to order
- Installation and user training support
- Technical service and preventive maintenance
- Fast, transparent quotation process
The Binotech 4K is an endoscopy camera system whose innovative design combines the light source and camera in a single unit, saving working space. Its 8.4-megapixel Sony CMOS sensor delivers images at 3840 x 2160 resolution and 60p frame rate.
The built-in LED cold light source is adjustable in 20 levels and has a memory function. Controlled from a 3.7-inch touchscreen, the system makes the image vivid and sharp through white balance correction and a detail enhancement effect, and video recording and image capture are done with a single button.
Key Features
- 8.4-megapixel 1/3-inch Sony Super HAD CMOS sensor, 4K (3840 x 2160) imaging
- Integrated design combining camera and light source
- Built-in LED cold light source, 20 adjustment levels, service life of over 50,000 hours
- Control from a 3.7-inch touchscreen
- HDMI, DVI and SDI video outputs
- JPG image capture and MP4 video recording to USB media
- X0.5 ~ X5.0 zoom
Applications
- ENT endoscopy and surgery
- Endoscopic diagnostic and interventional procedures
| Camera Sensor | 1/3-inch Sony Super HAD CMOS, 8.4 megapixels (8,400,000 pixels) |
|---|---|
| Image Size (H x V) | 3840 x 2160 |
| Scanning System | Progressive scan |
| Frame Rate (3840 x 2160) | 60p |
| Video Output | HDMI, DVI, SDI |
| Control | 3.7-inch touchscreen |
| Light Source | Built-in LED cold light with memory function, over 50,000 hours of service life |
| Brightness Adjustment | 20 levels |
| Input Voltage | 100-240 V AC, 50/60 Hz |
| USB Image Capture | JPG (1920 x 1080) |
| USB Video Recording | MP4, 1920 x 1080, 50/60p |
| Zoom | X0.5 ~ X5.0 |

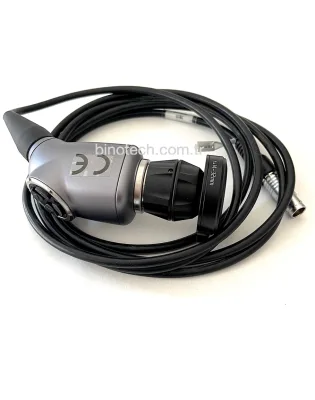

| Camera Head Controls | Freeze, white balance, video recording and photo capture buttons |
For every device you purchase we set up an installation, training and after-sales support plan. Contact our teams for preventive maintenance contracts, spare parts and clinical application support.
