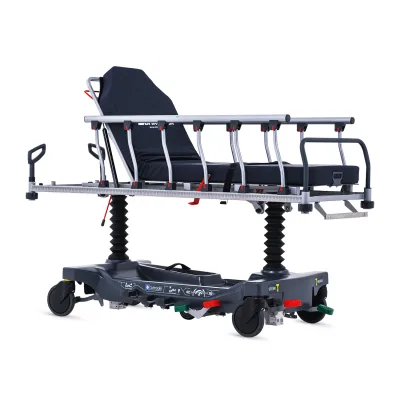

Emergency Stretcher CYCLONE EMC
CYCLONE EMC is a functional emergency stretcher with hydraulic height adjustment, four-sided brake pedals and foldable side rails, rated for a 320 kg…
Price on request
Stretchers

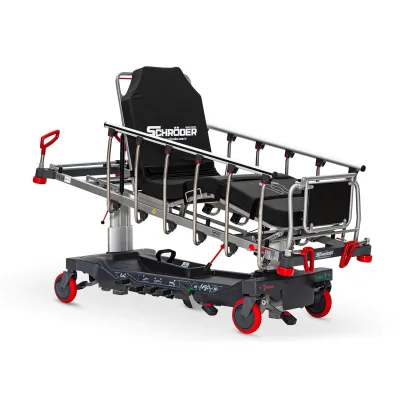

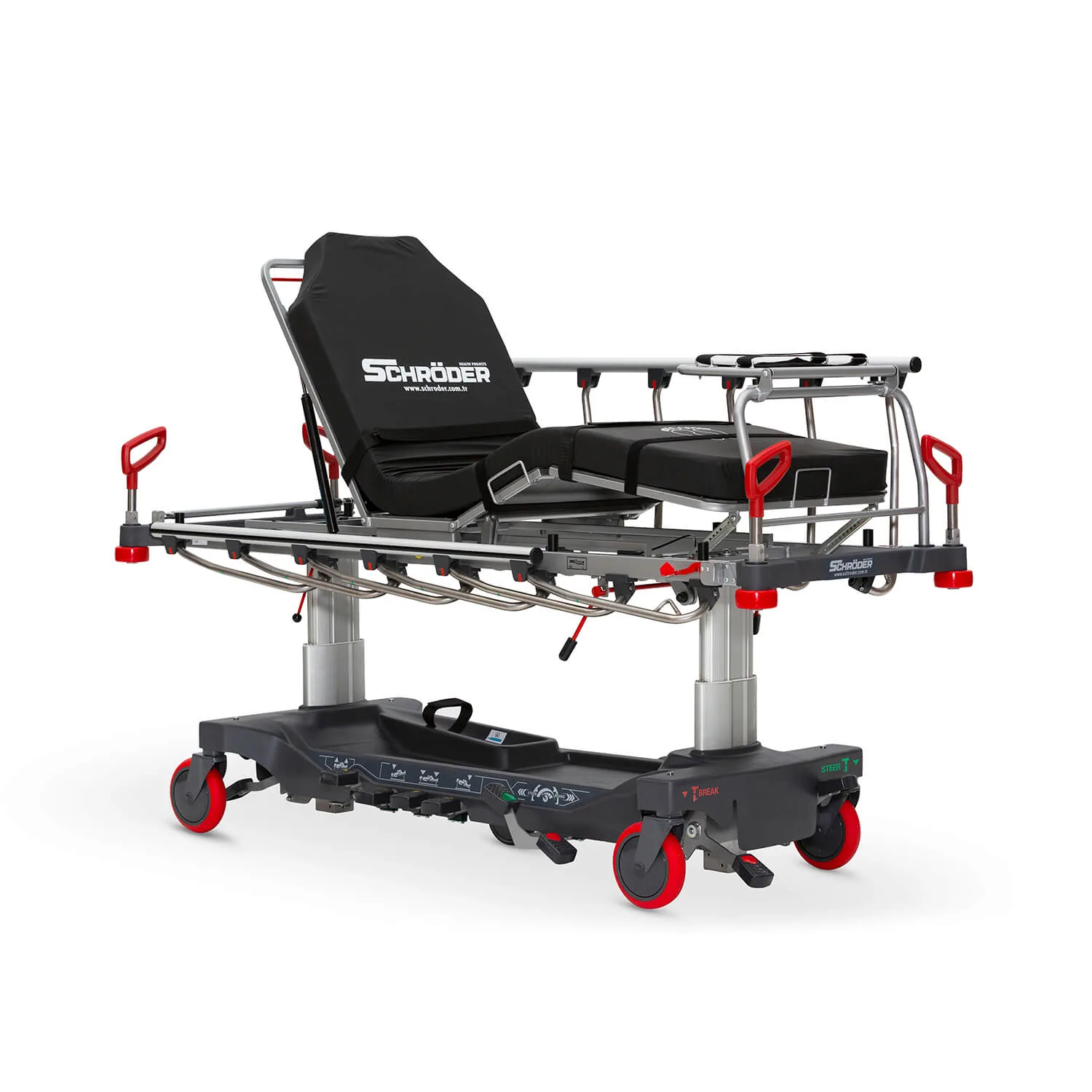

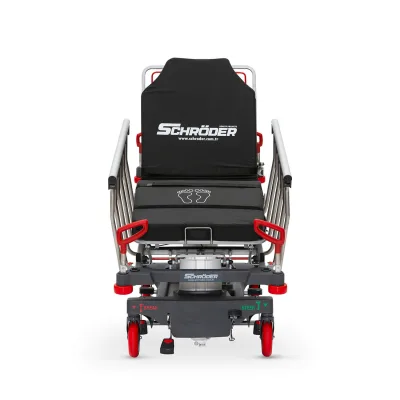

Emergency Stretcher CYCLONE PR
Brand: Schröder Health Product code: CYCLONE PR
CYCLONE PR is a fully washable emergency stretcher with a four-section lying surface, a full steer system and glideaway side rails, rated for a 320 kg safe working load.
Available to order
- Installation and user training support
- Technical service and preventive maintenance
- Fast, transparent quotation process
CYCLONE PR is an emergency stretcher designed for the high pace of emergency departments. Its four-section lying surface allows a cardiac chair position while the patient is being treated. The latest-generation full steer system provides control in sharp turns and makes the stretcher easier to steer and stop.
The heavy-gauge, steel-reinforced frame carries patients of different sizes. CYCLONE series stretchers are designed for easy washing and cleaning, and the stretcher is compatible with medical devices such as C-arms and X-ray units.
Key Features
- 320 kg safe working load on a steel-reinforced frame
- Four-section lying surface for the cardiac chair position
- Four-sided brake pedals reachable from the head, foot and sides; operated by pressing down
- Glideaway side rails that retract below the lying surface
- 0° – 83° backrest and 0° – 40° leg rest; 0° – 12° Trendelenburg and reverse Trendelenburg
- 20 cm centrally lockable casters and a 10 cm fifth caster
Applications
- Emergency departments
- Procedures requiring C-arm and X-ray imaging
| Overall Dimensions | 222 x 85 cm |
|---|---|
| Backrest Angle | 0° – 83° |
| Leg Rest Angle | 0° – 40° |
| Height Range (Without Mattress) | 60 – 86 cm |
| Trendelenburg Angle | 0° – 12° |
| Reverse Trendelenburg Angle | 0° – 12° |
| Mattress Platform | 65 x 195 cm |
| Side Rail Height | 37.5 cm |
| Caster Diameter | 20 cm (centrally lockable) |
| Fifth Caster | 10 cm |
| Safe Working Load | 320 kg |
| Accessory Options | IV pole, oxygen cylinder holder, foldable push bar on the leg support, safety belts, monitor, cassette, patient scale |
For every device you purchase we set up an installation, training and after-sales support plan. Contact our teams for preventive maintenance contracts, spare parts and clinical application support.
Related products
Stretchers

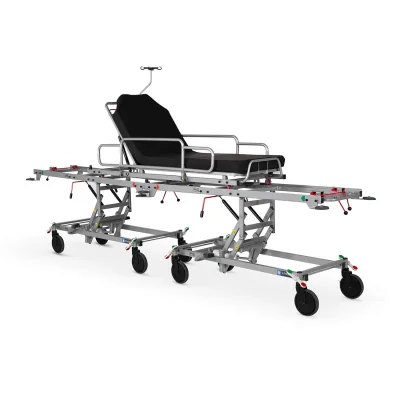

Operating Room Transfer Stretcher OT 140-H
Operating room transfer stretcher with hydraulic height adjustment and an adjustable backrest, offering 70 – 100 cm height, 20 cm castors and a 320…
Price on request
Stretchers

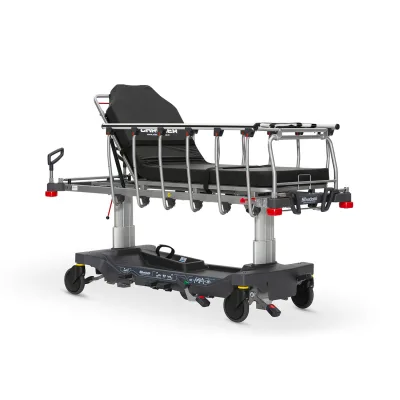

Transfer Stretcher CYCLONE TR
CYCLONE TR is a fully washable transfer stretcher with a full steer system, four-sided brake pedals and glideaway side rails, rated for a 320 kg safe…
Price on request
Stretchers

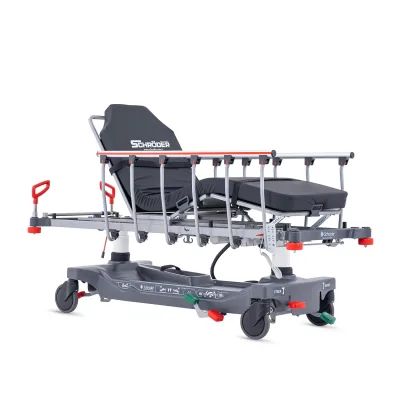

Electric Stretcher CYCLONE MT
CYCLONE MT is an electric emergency stretcher with four motors for height, Trendelenburg/reverse tilt, backrest and thigh adjustment, glideaway side…
Price on request
Stretchers

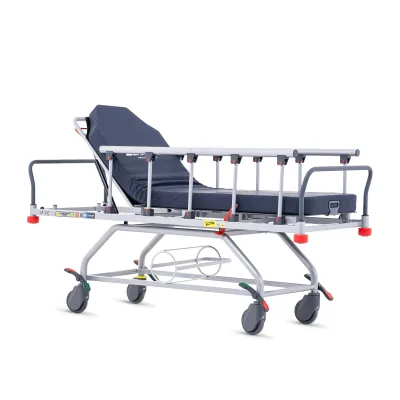

Patient Transfer Stretcher ST 27
ST 27 is a cost-effective stretcher for in-hospital patient transfers, with four-sided brake pedals, foldable side rails and an integrated oxygen…
Price on request
Stretchers

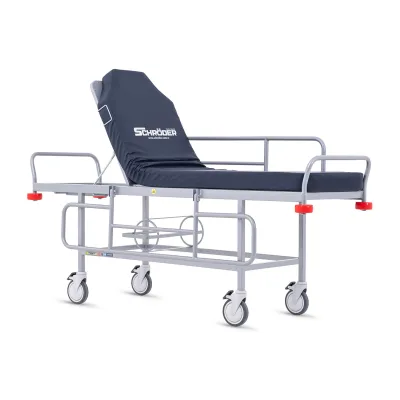

Stretcher ST 27 Basic
Economical stretcher with a fixed 76 cm height (without mattress), manually adjustable backrest and two-section metal platform; 100 mm removable…
Price on request
Stretchers

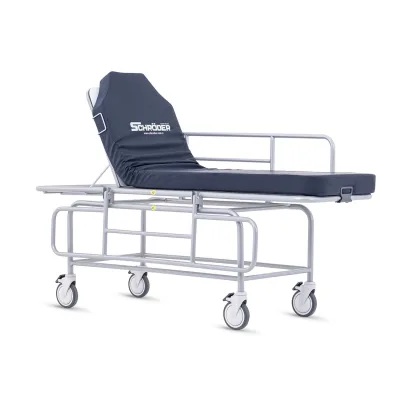

MRI-Compatible Stretcher ST 27 MRI
ST 27 MRI is an MRI-compatible stretcher made of non-magnetic materials, with foldable stainless steel side rails and a 220 kg safe working load.
Price on request
Stretchers

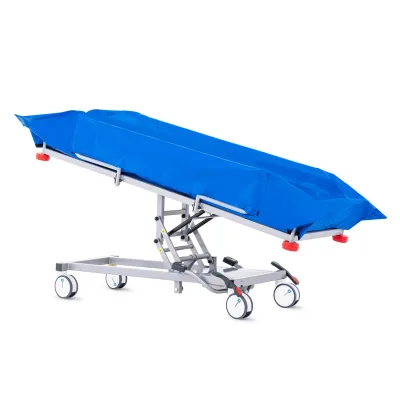

Patient Wash Stretcher ST 27 Wash
ST 27 Wash is a patient wash stretcher designed for patient hygiene, with adjustable height, a non-slip surface and safety belts, rated for a 270 kg…
Price on request
Stretchers

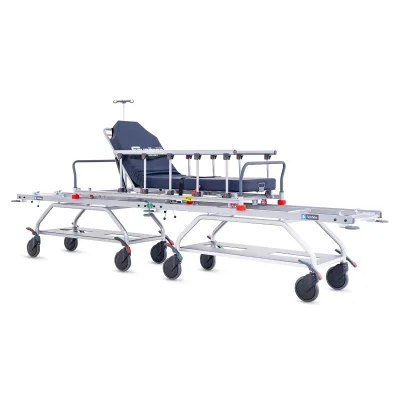

Operating Room Transfer Stretcher OT 140
OT 140 is an operating room transfer stretcher with a fixed height, a laminate two-section bed platform and removable ergonomic push bars, rated for…
Price on request
Stretchers

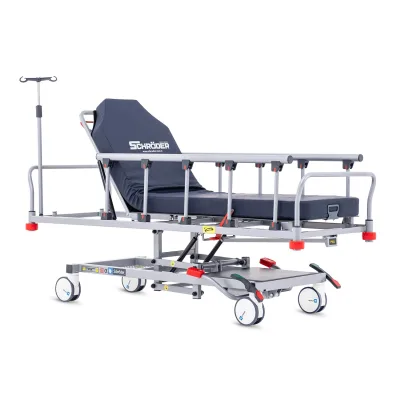

Emergency Stretcher ES 110
